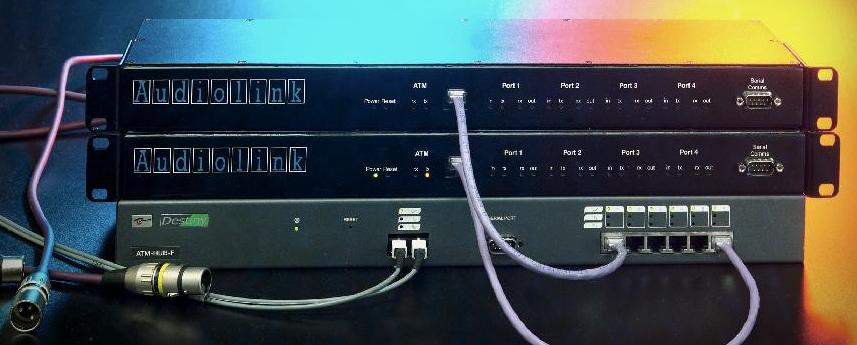

Two Audiolink 1 AES3 units connected to an ATM "hub". The
audio connections are at the back.
Click on the pic for an enlarged view
Audiolink units connect professional audio equipment to an Asynchronous Transfer Mode (ATM) network.
The encoding of the audio on the network conforms to AES47-2002, the standard for transmission of digital audio over ATM networks.
Products
AL01 rack-mount unit with four AES3 inputs and four AES3 outputs
AL00 printed circuit board with I2S inputs and outputs
Click here for AL01 data sheet in Word 2000 or HTML
Documentation
Audiolink control protocols
